OSD System Design NSW: How Civil Engineers Size and Build Your Detention Tank
OSD system design NSW is the kind of thing most homeowners and builders only hear about when they find out their building certificate is delayed. Nobody expects it at first. Then, all at once, the certifier will ask for on-site detention papers, and the whole project stops. When you know what OSD is and how civil engineers deal with it, you save time, money, and a lot of stress you do not need.
At R I Eng Pty Ltd, we create OSD systems for houses, granny flats, duplexes, townhouses, and homes that share walls. We work in Greater Sydney, Melbourne, and Brisbane.
What Is OSD and Why Does NSW Require It?
OSD means on-site detention. It is an underground tank. This tank takes the stormwater runoff from your place. Then, it lets the water go out slowly into the council pipes. The water is sent out at a controlled rate, not all at one time.
Here is why this is important. Every new building has more hard surfaces. A new roof, a concrete driveway, or a paved yard all make it worse. When it rains, the water goes straight into the street pipes. Before your house was built, the land would take in most of that water. Now it does not do that. If you look at thousands of new homes around NSW, there are too many pipes and channels for the council to handle.
OSD system design NSW makes each site handle its own water. Your tank holds extra water when there is a lot of rain. The outlet lets water out slowly after the storm gets less strong. Pipes and drains after your property do not get too much water at once. The people who live by you do not get water problems.
What Does OSD System Design in NSW Actually Involve?
This is where most people get surprised. OSD is not only about choosing a tank size from a catalogue. Each OSD system design in NSW is made just for your site. It depends on your council and your development footprint, too.

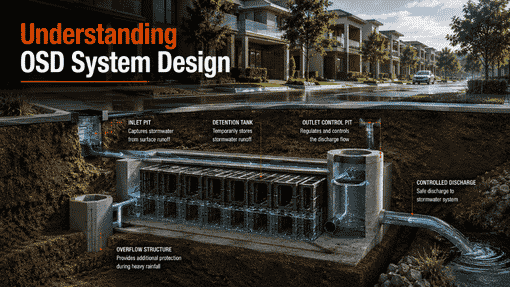

Our engineers at R I Eng Pty Ltd follow four main steps:
Site runoff modelling. We use DRAINS OSD modelling software to work out how much stormwater comes from your developed site. We also see how much water came from the land before anything was built. This helps us know how big the tank should be and how much water it must hold.
Permissible site discharge calculation. Every NSW council has a set rate for the most water that can leave your site. This is called the permissible site discharge rate. Parramatta, Blacktown, Hills Shire, and Penrith all use their own numbers. We use the right settings for your council. If you use the wrong numbers, the design will not be accepted.
Detention volume calculation. The tank needs to hold the extra water that comes from your site’s runoff after development, compared to what can safely flow out at the set rate during the design storm — usually the 1-in-100-year storm. Our OSD calculation shows the right amount of water the tank should store.
Outlet design. The outlet is what controls how fast the water flows out. In most home OSD systems, there is a slotted pit or an orifice plate. The size of the outlet needs to be planned. If it is not the right size, the tank will not drain the right way. It might hold water for too long, or water might drain too fast for the system to work well.
Which Properties Need OSD System Design in NSW?
In most NSW councils, OSD is needed for any building work that makes more of the ground hard and unable to soak up water. In practice, this is for:
Houses and knockdown-rebuilds — A new roof or a new driveway will almost always mean you need OSD.
Granny flats and other extra dwellings — Even a small extra home can add a lot of hard surface.
Duplexes and dual occupancies — These have two roofs that connect to one shared water outlet.
Townhouses and attached dwellings — The homes use one system under the ground, and all the roof water goes to the same spot.
Home extensions and double-storey additions — A bigger roof changes how water runs off, so you may need a new OSD plan.
If you are not sure if your project requires OSD in your council area, call us. We will check it for you in five minutes.

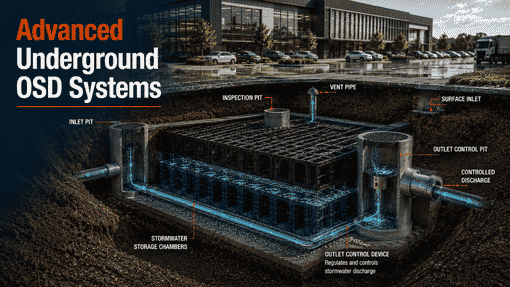

Underground OSD Tanks: What Gets Installed

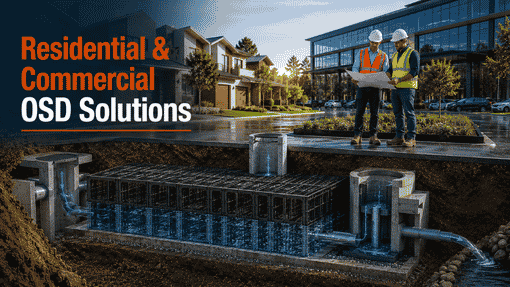

In most homes in NSW, the OSD system is a tank made of plastic that goes under the driveway or in the backyard. The tank connects to your roof and the pipes that carry away surface water on one side. On the other side, water flows out and goes into the council’s drain system.
R I Eng Pty Ltd gives you complete OSD engineering drawings. You will get tank sizes, details about where water comes in and goes out, overflow information, and steps on how to set everything up. Your builder and plumber can read these and know exactly what to do, without guessing.
5 Questions We Hear About OSD System Design in NSW
Q: Does every house in NSW need an OSD tank?
Not every house needs one. But if you build or add to a place and make more area with hard surfaces in a council that asks for OSD, you will need it. In most places in Greater Sydney, they do ask for it. R I Eng will check and let you know if you need one for your site and LGA.
Q: How big is a normal residential OSD tank?
The tank size can change based on the size of the land, roof size, and council rules. A single-storey house in western Sydney will usually need between 2,000 and 8,000 litres for detention. Our detention volume calculation gives you the right number for your home.
Q: Where does the OSD tank get installed?
Most of the time, the OSD tank is put under the driveway. This helps you use all of your yard and makes it easy to check the tank when you need to. You can also put the tank in the backyard if your driveway is small or if there is a lot of weight on it.
Q: Can the OSD tank double as a rainwater tank?
Some councils in NSW do let one tank be used for both OSD and BASIX needs. We will let you know if this is okay for your type of project and council.
Q: How long does OSD system design take?
For most places you live in, like houses, granny flats, duplexes, and townhouses, R I Eng Pty Ltd can give you a full OSD design in two to three business days after they get your site survey.
Work With R I Eng Pty Ltd on Your OSD System Design NSW
R I Eng Pty Ltd is a civil engineering company based in Burwood, NSW. We design OSD systems for homes and businesses in Greater Sydney, Melbourne, and Brisbane. Our designs follow the right council rules. Every drawing is clear and has enough detail, so your builder and certifier can use them with no need to ask us for more details.
